Overview

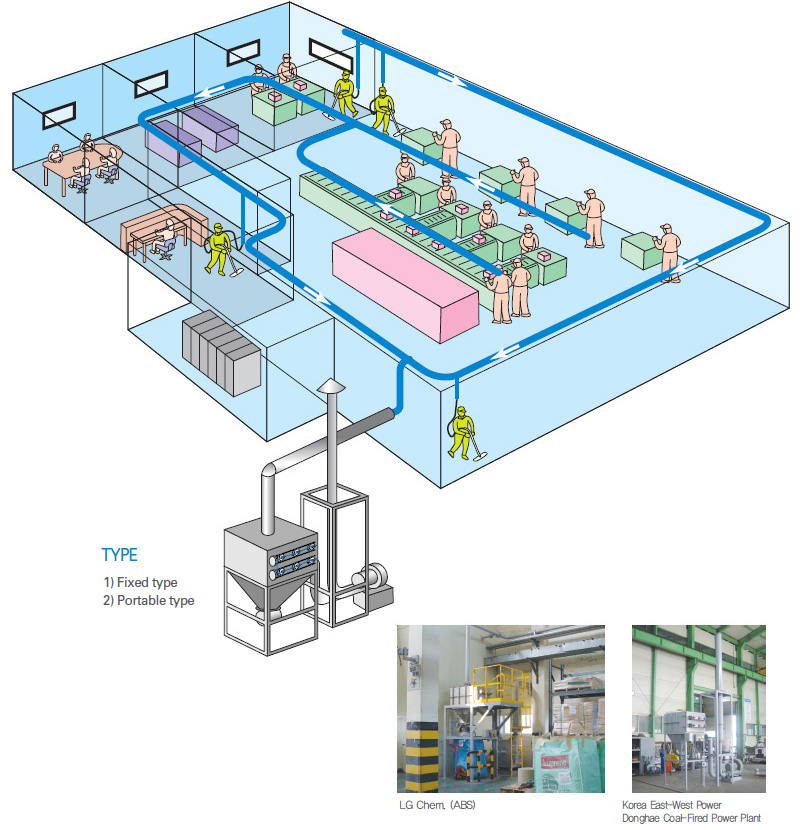

This central dust collection cleaning system sucks up
scattered dust or powder on the factory floor through
powerful fan to make clean work place as well as to protect
workers' health and safety. For this system, one dust
collector is to be installed outside with piping lines to each
floor and flexible hoses are to be connected to the pipe line
to clean up the floor inside.

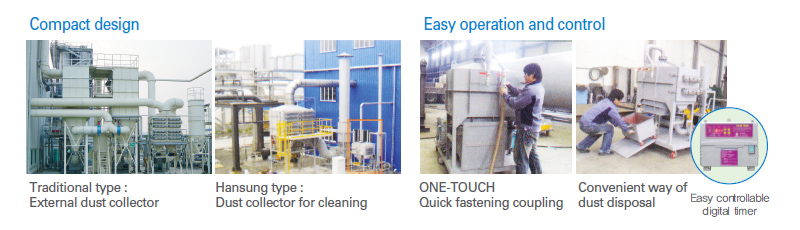

User-friendly cleaning type
1) Multi-user(2-3) can use simultaneously
2) Not required to carry heavy portable
cleaner
3) Simple one-touch coupling type
4) Cleaning with a broom brush is not
required

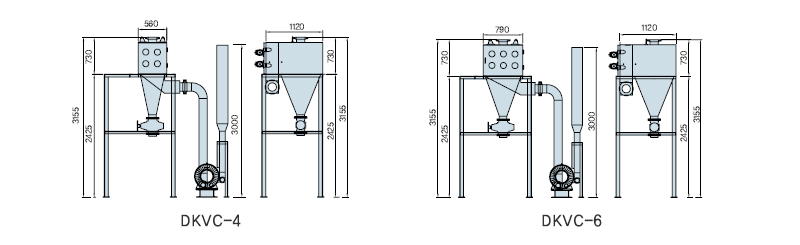

SPECIFICATION
Model No. Process flow
(§©/min) 		Filtering Area
(§³)		 Static pressure
(mmAq)		 FILTER
of filter		 Air Consumption
(§¤/min)
Min.~Max.
DKH-4 10~20 16 2,000~25,00 4 104
DKH-6 20~30 24 2,500~3,000 6 156
