Wet Scrubber ?
As a wet-type dust collecting device, the wet scrubber separate particles from gas by spraying cleaning liquid to promote cohesion of particles.

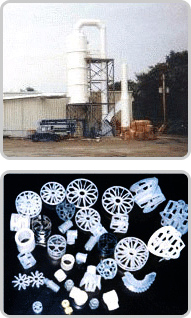

The trarette in the tower increases the contacting area of exhaust gas and cleaning liquid, which improves the cleaning effect. Smooth fillers (generally 1/2¡±) are used.
Not only dust in exhaust gas, but also polluted materials and poisonous materials such as fume in gas are removed by cleaning liquid that flows against the flow of gas. Water or NaOH is used as cleaning liquid, and demister is installed to remove mist accompanied with exhaust gas.

Features
High Efficiency more than 99.9%
Re-use of Scrubber Liquid
Constant Spray of Liquid through Non-Plugging Nozzle
Appropriate Material (CS, SUS, FRP, PVC, Etc.) for Characteristics of Gas
Packing Media, Trays and Demister available for Customers¡¯ Needs

Applications
SO2 , H2S, HCL, NOx, CL2, CO2, NH3, HF, Ethylene Oxide, Alcohols, Phenol, Formaldehyde Odor, Sulfuric Acid, Mist, Acetic Acid and Silicon Tetra Chloride

SPECIFICATION
Model Process
rate
(§©/min)		 Blower Rotation pump Body size
Constant
pressure
mmAq)		 Power
(kw)		 rate
(L/min)		 Power
(kw)		 Dia
(mm)		 H
(mm)
HSWS-10 100 250 11 250~300 2.2 1500 4590
HSWS-15 150 250 15 380~450 3.7 1500 4590
HSWS-20 200 250 19 500~600 5.5 1700 4590
HSWS-25 250 250 22 600~750 7.5 1900 4590
HSWS-30 300 250 30 800~900 7.5 2050 4590
HSWS-35 350 300 37 900~1050 11 2225 4590
HSWS-40 400 300 45 1000~1200 11 2225 4590
HSWS-45 450 300 45 1200~1350 11 2520 4590
HSWS-50 500 300 55 1350~1500 15 2660 4590
HSWS-60 600 300 75 1600~18000 20 290 4590
