Amazing function of Dry Paint Booth
Promptly providable due to Mass Production by Modular way.
Cleaning is not required like conventional paint booth.
Easy manufacturing and installation with NCT process and assembly.
Various selection based on the size and the form of operation objects.
Inhibition of whirlpool of air when spray painting.

SPECIFICATION
MODEL DIMENSION (mm) Gross
Weight
(kg)		 Fan & Motor Filter Q¡Çty
W L H
DKPB-04 1080 1700 1840 110 60§©/min 430¨ª 0.75kw (H)2 x (W)2 ͪ4
DKPB-06 1580 1700 1840 160 90§©/min 500¨ª 1.5kw (H)2 x (W)3 ͪ6
DKPB-09 1680 1200 1760 200 135§©/min 580¨ª 2.2kw (H)3 x (W)3 ͪ9
DKPB-12 2180 1200 1760 250 180§©/min 675¨ª 3.7kw (H)3 x (W)4 ͪ12
DKPB-16 2180 1600 2360 300 240§©/min 770¨ª 3.7kw (H)4 x (W)4 ͪ16
DKPB-20 2680 1600 2360 330 300§©/min 835¨ª 5.5kw (H)4 x (W)6 ͪ20
DKPB-24 3180 1600 2360 400 (180§©/mim 675¨ª) x 2,
3.7kw x 2		 (H)4 x (W)6 ͪ24
DKPB-28 3680

1600

 2360 465 (210§©/min 770¨ª) x 2,
3.7kw x 2		 (H)4 x (W)7 ͪ28

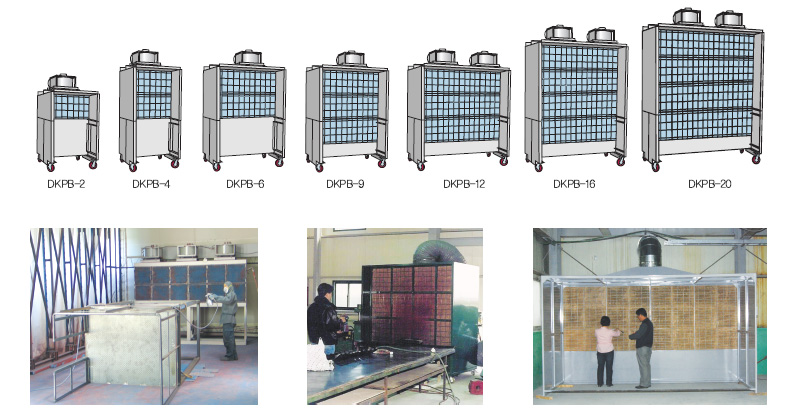

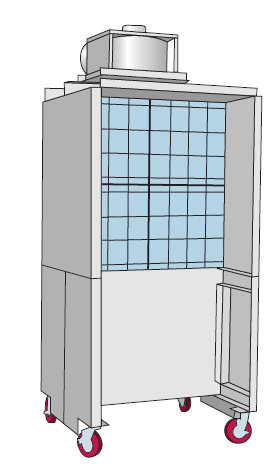

Dry Paint Booth Design
Variable size.
No fly painting ash.
Modular mass production.
Immediate supply
NCT processing and assembling.
Caster is useful for moving.
Production and installment is convenience.
No need to clean the booth.

Characteristics of Dry Paint Booth Filter
Each different direction filter set 10 pieces.
19 times adsorption area from filter¡¯s surface to inside.
None flameable filter material.

Perfect efficiency- 10 layer filter layer, cubic holes.
Adsorption all kind of pigment, oil, dyes,
mist, glass, fiber, plastic¡¦ etc.

13 mmAq - average pressure drop.

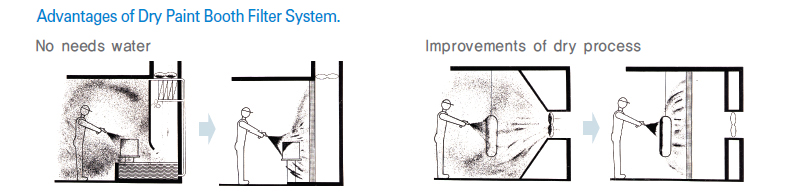

No water curtain.
No cleaning or repairing of pump, valve and water tank.
Over 99.5% mists are directly absorbed.
Good energy efficiency and safety.
No fly away ash and stick.
The worker isn¡¯t covered by mist.
